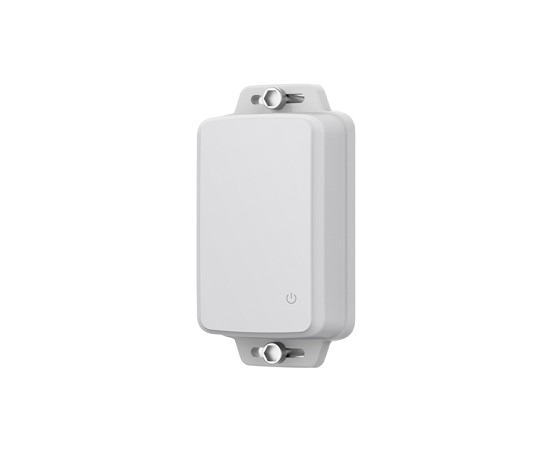

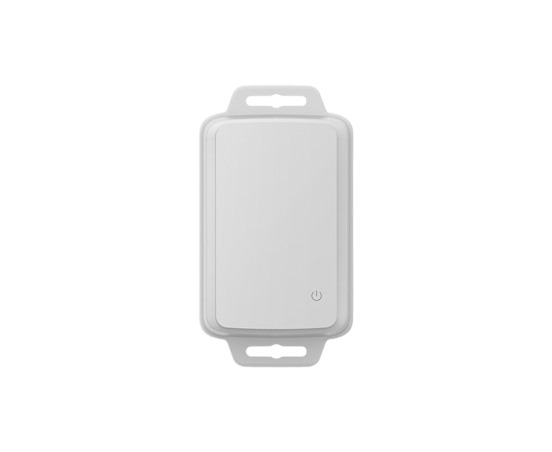

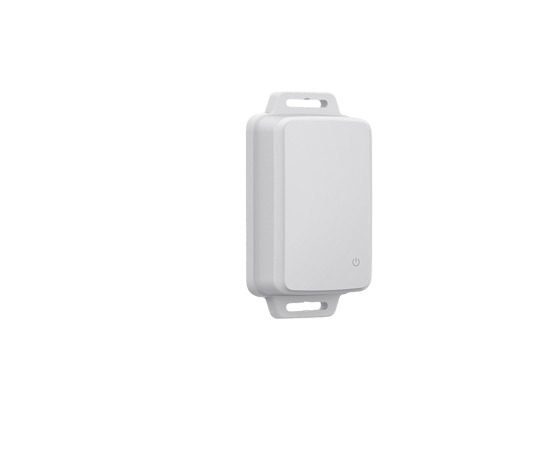

Asset Tracking Tag - M3 Mini Asset Tracking Beacon
The M3 Mini is an advanced Bluetooth asset tracking tag, specifically engineered for industrial applications. making it an ideal solution for a wide range of industrial assets.
The M3 mini is an advanced Bluetooth asset tracking tag specifically engineered for industrial applications.
It has a compact size for easy deployment and a built-in magnet for strong adhesion to metal surfaces.
It is equipped with a large 2600mAh battery, providing an ultra-long service life of over 8 years.
It is waterproof and anti-collision, allowing it to withstand harsh environments.
It is ideal for manufacturing, construction, and warehouses, offering reliable and precise tracking.
Description
The M3 mini asset tracking tag, powered by the Nordic nRF52 series chip, is designed to withstand harsh environments with its IP67 waterproof rating and IK09 anti-collision capabilities. Its compact size and high and low temperature resistance (-30°C to 80°C) make it versatile for various industrial applications.Â
Equipped with a replaceable 2600mAh ER14505 battery, the M3 mini offers an impressive operational life of over 8 years. It also has a long broadcast distance of up to 150 meters, ensuring effective asset tracking over large areas. The embedded 3-axis sensor aids in power consumption management, enhancing efficiency.
The M3 mini provides multiple installation options, including screws, zip ties, stickers, and magnetic suction, allowing for secure attachment to various surfaces. The integrated hall sensor offers an optional anti-misoperation switch design, and the customizable tamper-proof feature ensures reliable and secure asset management.
Connectivity
Supports BLE 5.0 for efficient data transmission.
Dimensions
Measures 94.6 * 51.7 * 22.8mm, making it compact and easy to install.
Material
Made from durable PC + ASA, ensuring longevity.
Weight
Weight: Weighs only 30g, making it lightweight and easy to handle
IP Rating
Rated IP67 for dust-tight and water-resistant protection.
Waterproof
IP65 rating, providing additional waterproof capabilities.
Battery Capacity
With a replaceable 2600mAh battery with a lifespan of over 8 years.
Operating Temperature
Can operate in temperatures ranging from -30°C to 80°C.
Certification
Certified by FCC, CE, RoHS, REACH, and Bluetooth, ensuring compliance with industry standards.
Asset Tracking Tag
M3 Mini Asset Tracking Beacon
The M3 Mini is an advanced Bluetooth asset tracking tag, specifically engineered for industrial applications. making it an ideal solution for a wide range of industrial assets.
The M3 mini is an advanced Bluetooth asset tracking tag specifically engineered for industrial applications.
It has a compact size for easy deployment and a built-in magnet for strong adhesion to metal surfaces.
It is equipped with a large 2600mAh battery, providing an ultra-long service life of over 8 years.
It is waterproof and anti-collision, allowing it to withstand harsh environments.
It is ideal for manufacturing, construction, and warehouses, offering reliable and precise tracking.
Nordic nRF52 series
IP67 Waterproof and IK09 anti-collision
Smaller product size and better application adaptability
Long operational life of more than 8 years
Long broadcast distance of up to 150m
Replaceable battery: 2600mAh 1*ER14505
High and low temperature resistance (-30°C ~ 80°C)
Integrated hall sensor for anti-misoperation switch design (optional)
Embedded 3-axis sensor for power consumption management
Customizable tamper-proof feature

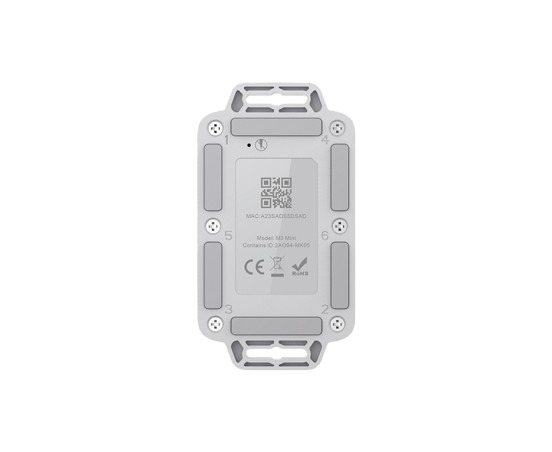

Multiple installation options (screws, zip tie, sticker, and magnetic suction)
- M3 mini is an advanced Bluetooth asset tracking tag, specifically engineered for industrial applications. With its superior design, the M3 mini offers exceptional structural and installation benefits, making it an ideal solution for a wide range of industrial assets. Its compact size ensures easy deployment, while the built-in magnet guarantees strong adhesion to metal surfaces. Equipped with a large 2600mAh battery, the M3 mini has an ultra-long service life of over 8 years, and its waterproof and anti-collision capabilities allow it to withstand harsh environments. Whether in manufacturing, construction, or warehouses, the M3 mini is the ultimate choice for reliable and precise tracking.
| Model | Telegiga M3 Mini Asset Tracking Beacon |
| Connectivity | BLE 5.0 |
| Dimensions | 94.6 * 51.7 * 22.8mm |
| Color | Black |
| Material | PC + ASA |
| Weight | 30g |
| IP Rating | IP67 |
| Waterproof | IP65 |
| Sensor | Accelerometer sensor, Hall effect sensor (Optional) |
| Battery Capacity | 2600mAh (replaceable battery) |
| Battery Lifespan | 8+ years* |
| Operating Temperature | -30°C to 80°C |
| Transmission Range | 150m (open area without obstacles) |
| Installation | Screw, Sticker, Zip Tie, Magnetic adsorption (Optional) |
| Certification | FCC, CE, RoHS, REACH, Bluetooth |
