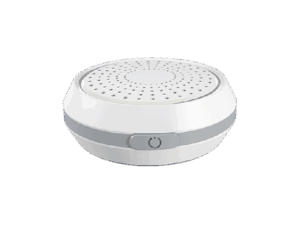

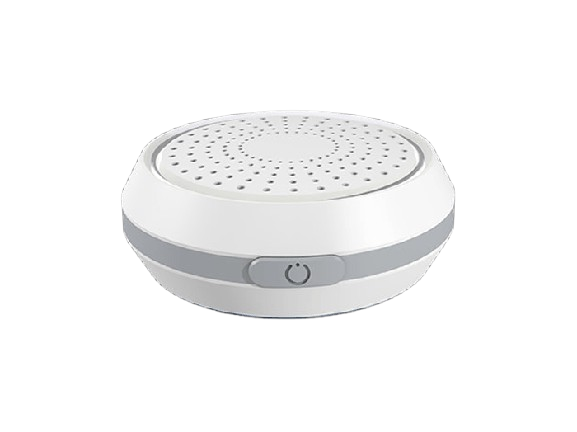

TeleGiga H2 Indoor Navigation Beacon

TG-HX1

The H2 navigation beacon is one of your best choices for indoor navigation tracking solutions. It is based on a 2.4GHz design, and boasts a waterproof level of IP65. In addition to broadcasting its own MAC address, the H2 navigation beacon also broadcasts the strength of the Bluetooth signal, which is RSSI information. According to RSSI information, the closer the Bluetooth receiver is to the transmitter, the stronger the signal strength, and vice versa. When the signal strength weakens, the relationship between the signal strength and the distance from the transmitter can be determined through the transformation of signal strength.


Get A Quote
Indoor Navigation Ready
Designed for precise indoor tracking with motion LIS3DH sensor and red LED indicator.
Multi-Protocol Support
Compatible with iBeacon, Eddystone (UID/URL/TLM), and GATT service for flexible deployment.
1000mAh Replaceable Battery
Long-lasting power with up to 5 years of battery life and easy replacement.
Durable & Certified Build
IP65 waterproof rating with FCC, CE, RoHS, and REACH certifications.
Specifications
Feature Details
Model TG-HX1
Size (H×W×L) 48.5 × 48.0 × 14.7 mm (H2)
48.5 × 48.0 × 16.3 mm (H2A)
Weight 24g (H2) / 25.7g (H2A)
Battery Capacity 1000mAh
Default Battery Life Up to 5 years
Battery Replaceable Yes
Range Up to 150 meters (open area, no obstacles)
Waterproof IP65
Protocols iBeacon & Eddystone: UID, URL, TLM; GATT Service
Firmware Updating OTA (Over-the-Air)
Installation Hang, Neck chain, Sticker
Built-in Sensor Motion LIS3DH
LED Single red LED
Certification FCC (USA), CE-RED, CE-LVD, CE-EMC, REACH, RoHS (Europe); Custom options available
