TeleGiga H3 Credit Card Beacon

TG- H3 Beacon Card

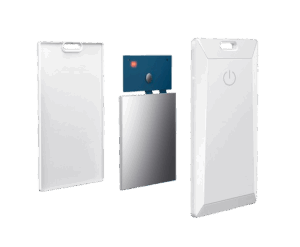

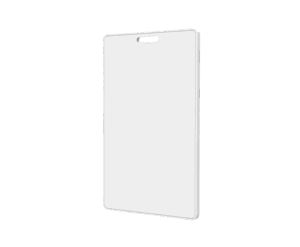

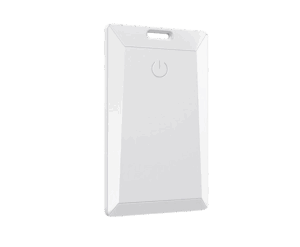

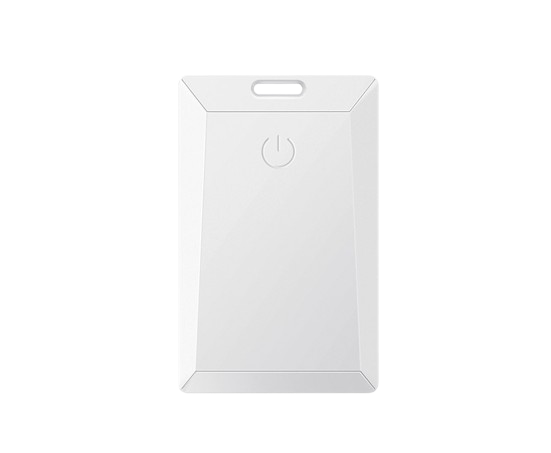

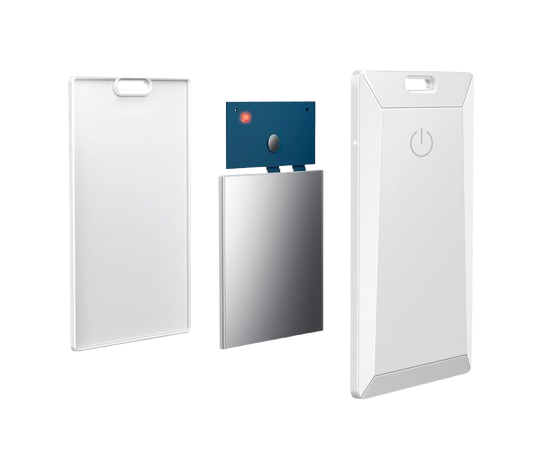

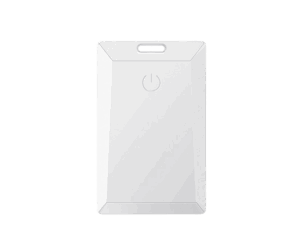

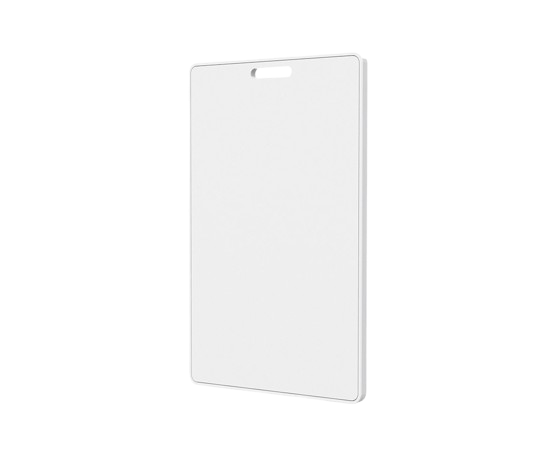

H3 Beacon is a useful and long-range card beacon whose range is almost 150m. However, the range depends on its working environment. H3 card beacon uses the ultra-low-power ARM® chipset NORDIC® nRF52 series. Its dimension is 89.59 x 54.13 mm and its thickness is about 5.20 mm. The primary aim of the H3 beacon card is to provide commercial advertisements and indoor location-based services. So it works efficiently in the desired environment.

Get A Quote
Slim Credit Card Form Factor
Ultra-thin 5.2mm design fits seamlessly into wallets, badges, or compact setups.
Multi-Protocol & OTA Support
iBeacon, Eddystone (UID/URL/TLM), GATT service with OTA firmware updates.
800mAh Built-In Battery
Long-lasting Li-MnO₂ cell with up to 5 years of runtime—no replacement needed.
IP66 Waterproof & Certified
Durable ABS shell with FCC, CE, RoHS, REACH certifications for global deployment.
Specifications
Feature Details
Model TG H3 Credit Card Beacon
Main Chip Nordic nRF52
Battery Non-replaceable Li-MnO₂, 800mAh
Size (H×W×L) 85.6 × 54.1 × 5.2 mm
Weight 20g (with battery)
Material ABS
Range Up to 150 meters (open area, no obstacles)
Waterproof IP66
Protocols iBeacon & Eddystone: UID, URL, TLM; GATT Service
Firmware Updating OTA (Over-the-Air)
Button Mechanical button
Sensor 3-axis accelerometer sensor (optional)
Installation Hang, Neck chain, Sticker
Certification FCC (USA), CE-RED, CE-LVD, CE-EMC, REACH, RoHS (Europe); Custom options available
