TeleGiga H4-P5202DH2 Sensor + Wirepas Mesh

TG-H4-P5202DH2

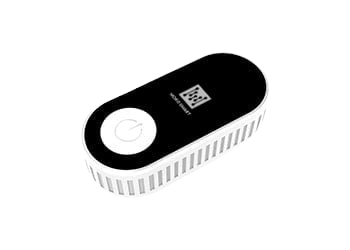

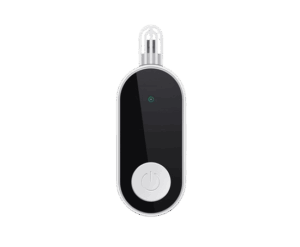

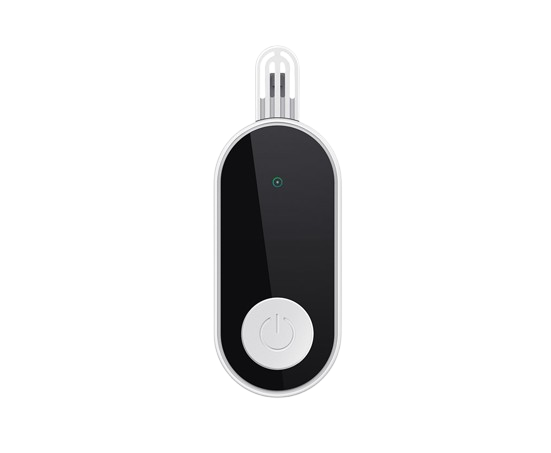

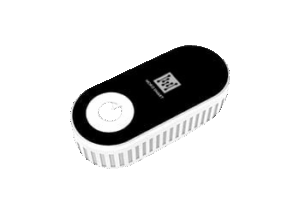

Telegiga H4-P5202DH2 Sensor + Wirepas Mesh is a compact, ultra-efficient advertising beacon designed for smart environments and sensor-driven campaigns. Powered by the Nordic NRF52 chipset and supporting BLE 5.0, it offers configurable triggers including button press, temperature, humidity, and motion detection.  The device supports Wirepas Mesh for scalable, low-power networking and is fully customizable—from NFC wake-up (MOQ 1000 pcs) to logo and wristband color (MOQ 200 units).  Ideal for retail, logistics, and wearable IoT deployments.


Get A Quote
Precision Environmental Sensing
Optional temperature, humidity, and barometric sensors with ±0.3°C and ±0.2% accuracy.
BLE 5.1 with Flash Logging
Supports 60,000 data logs via 2MB flash and BLE 5.1 connectivity.
5-Year Battery Life

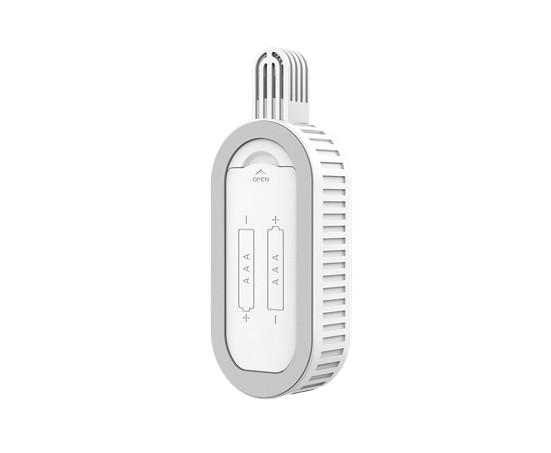

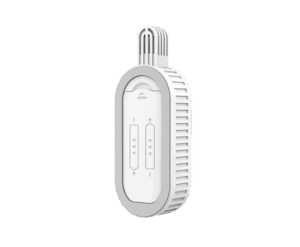

Powered by 2×AA replaceable batteries (1200mAh) for long-term deployments.
Durable & Certified Design
IPX4-rated ABS+PC+PMMA shell with FCC, CE, RoHS, and REACH certifications.
Specifications
Feature Details
Model TG H4
Size (H×W×L) 88 × 32.2 × 18.2 mm
Connectivity BLE 5.1
Color White
Material ABS + PC & PMMA
IP Rating IPX4
Battery Capacity 1200mAh (2 × AA replaceable batteries)
Battery Lifespan 5 years
Flash Memory 2M Bytes (Supports 60,000 data logging groups)
LED Indicators Red, Green, Blue
Accelerometer Sensor Optional
Barometric Pressure Sensor Optional
Operating Temperature -20℃ to +60℃ (Body)
-40℃ to +125℃ (Probe)
Temperature Accuracy ±0.3℃
Humidity Accuracy ±0.2%
Certification FCC, CE, RoHS, REACH
