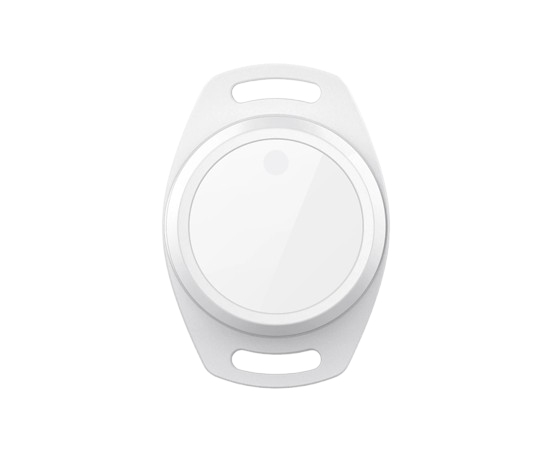

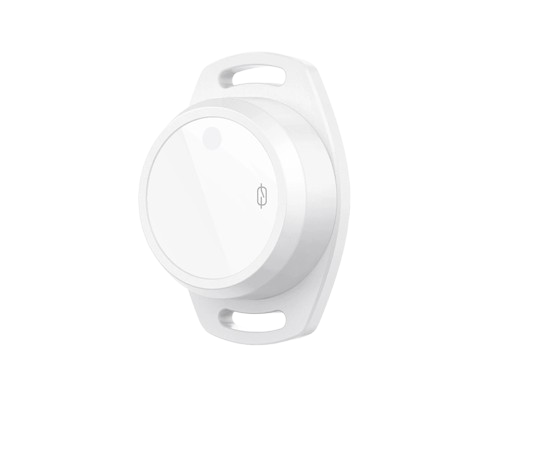

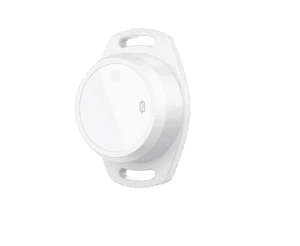

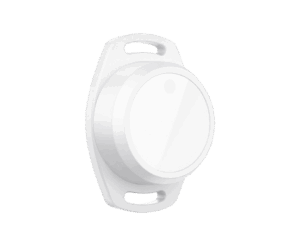

TeleGiga L01/L01A Wayfinding Anchor

TG-L01/L01A Wayfinding Tag

The L01/L01A wayfinding anchor, a BLE technology-based and impressive battery life positioning beacon, is ideal for indoor wayfinding and navigation, proximity marketing, and asset tracking in hospitals, shopping malls, and warehouses. Besides, the L01 wayfinding anchor combines indoor positioning and condition monitoring in one solution. By integrating with temperature, humidity, and barometer sensors, it alerts when ambient conditions go out of spec for early issue detection.

Get A Quote
BLE 5.1 with Long-Range Coverage
Up to 150m transmission range in open areas, ideal for indoor navigation and asset tracking.
Multi-Sensor Intelligence
Includes temperature, humidity, hall effect, accelerometer, and barometric pressure sensors.

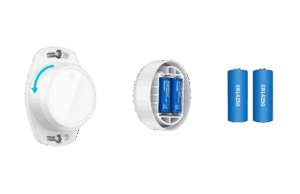

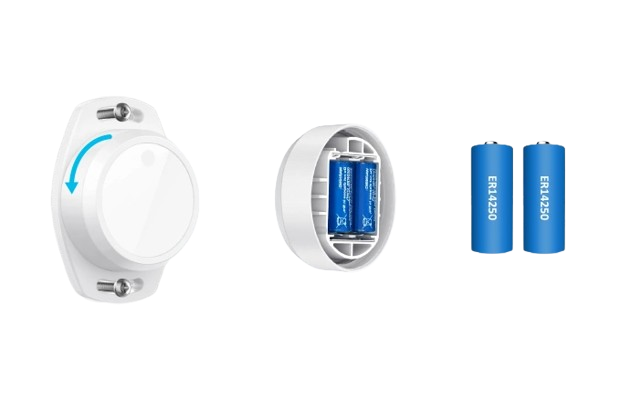

8+ Year Replaceable Battery
2400mAh capacity with ultra-low power design for extended deployments.

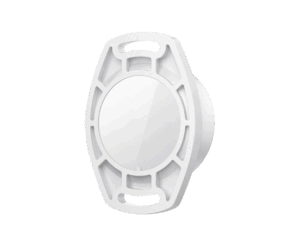

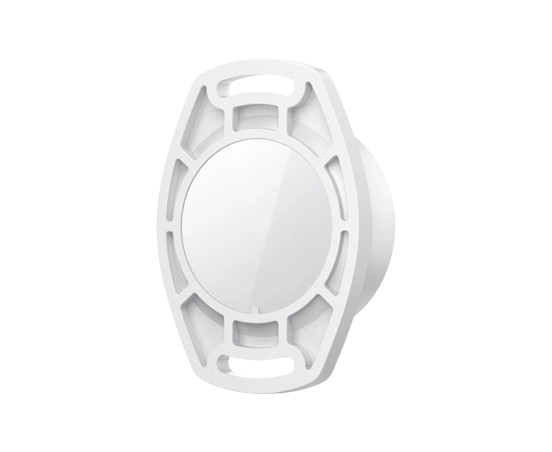

Rugged & Versatile Mounting
IP67-rated PC housing with sticker, screw, zip tie, or magnet installation options.
Specifications
Feature Details
Model TG L01 / L01A Wayfinding Tag
Connectivity BLE 5.1
Dimensions 76.2 × 53.6 × 24.0 mm (L01)
Φ54.5 × 24.0 mm (L01A)
Color Gray
Material Polycarbonate (PC)
IP Rating IP67 (Water & Dust Resistant)
Sensors Temperature & Humidity sensor
Hall effect sensor
Accelerometer sensor
Barometric pressure sensor
Battery Capacity 2400mAh, replaceable
Flash Memory 2M Bytes
Battery Lifespan 8+ years
Operating Temperature -20°C to 60°C (extendable to -40°C to 80°C)
Transmission Range Up to 150 meters (open area, no obstacles)
Installation Sticker, Screw, Zip Tie, Magnet
Certification FCC, CE, RoHS, REACH
