Telegiga M1 Beacon Tag

TG- M1 Beacon Tag

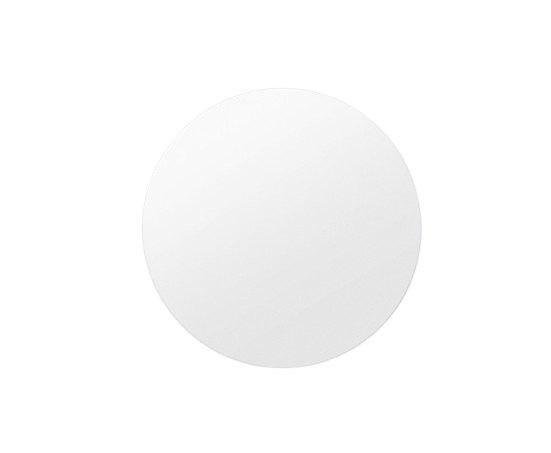

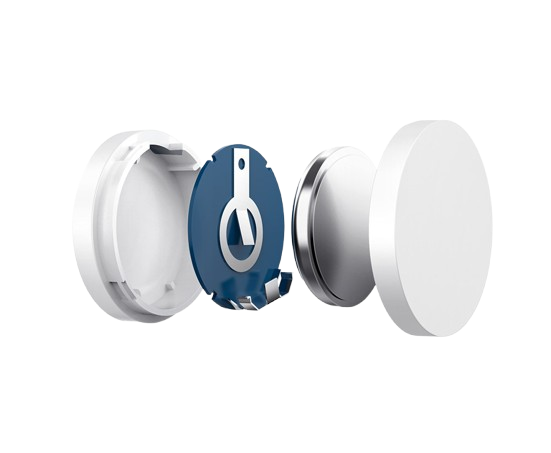

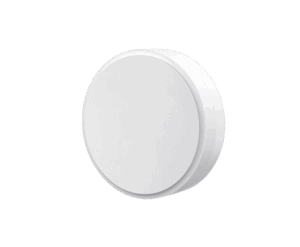

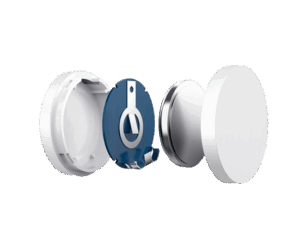

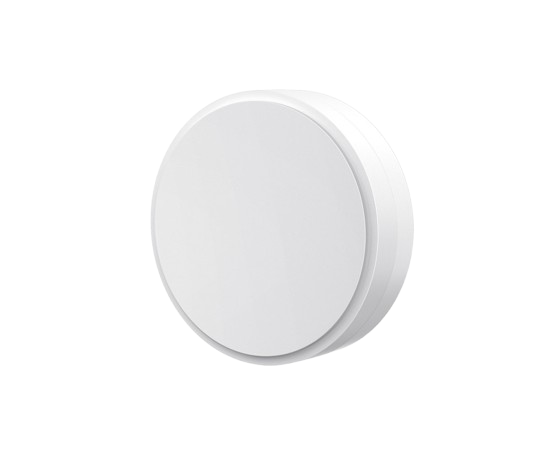

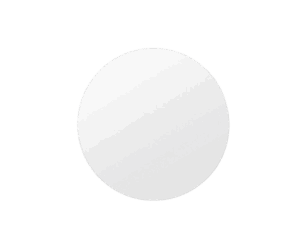

The M1 beacon is a short-range and portable beacon tag with a 40 m range in the open space. However, the range can vary in different physical environments. The device belongs to ultra-low-power ARM® chipset NORDIC® nRF52 series. It is a round shape device with a 26 mm diameter and its maximum thickness is 7.10 mm.With the device net weight of 5.4 g. M1 beacons contain onboard/ PCB Antenna with 50-ohm power, and it can transmit signals up to 40 m.

These iBeacon tag devices are certified by  FCC and CE.

Get A Quote
Long Battery Life
owered by a replaceable CR2032 battery with up to 16 months of runtime.
Multi-Protocol Support
Compatible with iBeacon, Eddystone UID/URL/TLM, and GATT service.
Compact & Easy to Mount
Ultra-small ø26 × 6.85 mm size with 3M sticker attachment.
Built-in Motion Sensor
Integrated LIS3DH sensor for motion detection and tracking.
Specifications
Feature Details
Model TG M1 Beacon
Size (H*W*L) ø26 × 6.85 mm
Battery Model CR2032
Battery Capacity (mAh) 225 mAh (replaceable)
Default Battery Life 16 months
Battery Replaceable Yes
Max Range 30 meters (+4 dBm)
Waterproof Not specified
Protocols iBeacon & Eddystone: UID, URL, TLM; Eddystone Configuration GATT Service
Firmware Updating Over-the-air (OTA)
Attachment Method 3M double-sided sticker
Built-in Sensor Motion LIS3DH
Additional Technology RFID, RGB
Certification CE & FCC
