TeleGiga X-102

BrioPi-X102

AI-Powered, Privacy-Assured, People Counting Sensors, no matter your industry, we are here to boost your efficiency and profits while reducing operational & energy costs.

TeleGiga people counting Solution uses iToF (indirect time of flight) technology. This technology has excellent real-time performance and stable measurement accuracy. Unlike binocular vision and camera imaging to obtain images and videos, TOF only obtains 3D depth information, eliminating privacy concerns.

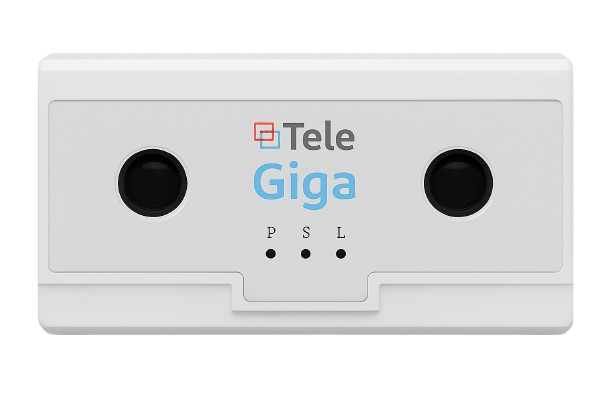

Dual-Lens Precision
Stereo camera setup ensures accurate footfall detection and movement tracking across zones.
Smart Analytics Ready
Integrates seamlessly with analytics platforms for occupancy, conversion, and engagement insights.
Real-Time Alerts
LED indicators (P, S, L) provide instant status feedback for power, signal, and logging activity.
Privacy-First Design
Captures behavioral data without compromising customer identity—ideal for GDPR-compliant environments.

Core Features

Key features

  • Real-time accurate statistics: Real-time and accurate identification of the human body with an accuracy rate above 98%, including precise filtering of children and other large objects.

  • Wide coverage: Binocular passenger counting device offering a wide field of view of 100°.

  • Timeliness of data upload: The device uploads passenger flow data in real time, with intervals configurable to 1 minute, 10 minutes, 30 minutes, etc., including equipment status.

  • Rich expansion interface: Supports mainstream communication interfaces, extended RS-485 support, diverse development and upgrade interfaces, intelligent sensors, and more.

  • Multi-protocol support: Provides HTTP POST/HTTPS POST protocol data docking and supports third-party development data integration with the device.

  • Network intelligent devices: Supports local computing without the need for a local server, flash offline storage, network disconnection resilience, power failure tolerance, and both wired and wireless connections.


  • Capacity Limitation Mode: When capacity limits are reached, the device sends a signal to trigger an alarm with a sound alert.
  • Child Mode: After setting a height threshold, individuals shorter than this height are recognized as children.
  • Remote Control Mode: Allows the host device to remotely control various electrical appliances.
  • Data Display Mode: The device pairs with the host to visualize data for easy interpretation.
  • Channel Mode: Detects the number of people entering through doors and entering the store.
  • Standalone Mode: The device can store local data for up to 90 days. Local records can be exported and used in environments without network connectivity.

Key Functional Highlights

Staff Detection and Exclusion
Simple lanyards help exclude staff from customer counts.
Open Areas & Wide Entrances
Connect multiple sensors for seamless tracking across large spaces.

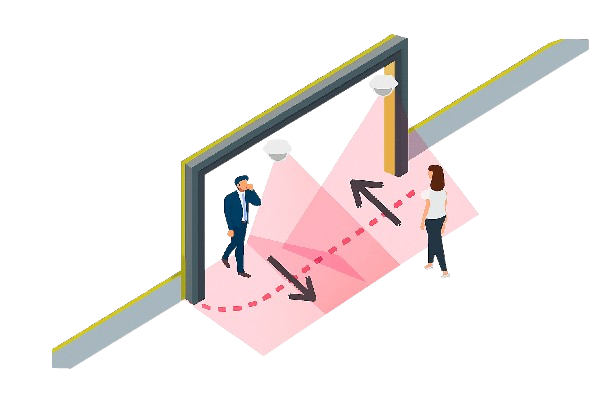

Multi-Directional Counting
Detects movement direction and adjusts counts accordingly.
Real-time Stats
Accurate human detection with 98%+ accuracy, filtering children precisely.
Network Smart
Local computing, offline storage, PoE power, wired/wireless support.
Multi Protocol
Supports HTTP/HTTPS POST and secondary development.
Smart Buildings & Offices
Enable occupancy monitoring and energy-efficient space utilization.
Capacity Alert
Triggers alarm when people count exceeds limit.
Child Mode
After setting the height of children, people lower than than height will be recognized as children
Specifications
Feature Specification
Model BrioPi-X102
Field of View Horizontal 100°, Vertical 70°
Accuracy ≥98%
Height Range 2.2–6m
Coverage 1.2–5.5m
Filter Out Height 0.5–1.2m
Power Consumption 3.2W–7.2W
Power Supply Mode POE (802.3af/at) / DC9–36V (Standard 12V)
Networking Wired Network / Wi-Fi
Addressing Static IP / DHCP
Offline Caching 90 days
Data Upload Methods HTTP POST / HTTPS POST / Modbus-RTU / Modbus-TCP / MQTT
Certificates & Reports CE, FCC, RoHS, IP66 Waterproof Report, Quality Inspection Report, High & Low Temperature Test Report, Appearance Patent, Utility Model, MTBF Report

Regional Coverage

Installation Height Coverage Width
2.2m 1.2m
2.5m 1.9m
2.6m 2.1m
2.7m 2.3m
2.8m 2.6m
2.9m 2.8m
3.0m 2.9m
3.1m 3.3m
3.2m 3.5m
3.3m 3.8m
3.4m 4.0m
3.5m 4.3m
4m–6m 5.5m

Ideal Use Cases

Designed for environments that demand accurate footfall tracking and behavioral analytics.

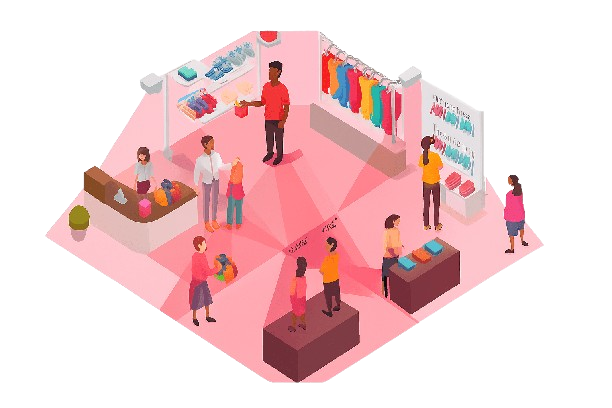

Retail Stores
Monitor customer flow, optimize staffing, and measure conversion rates.
Airports & Transit Hubs
Track passenger movement and manage crowd density in terminals.
Museums & Exhibitions
Understand visitor engagement and zone popularity without invading privacy.
Smart Buildings & Offices
Enable occupancy monitoring and energy-efficient space utilization.

Ready to Upgrade Your Business?

Get in touch with our sales team to request a quote or learn more about the  TeleGiga X-102 People Counting System.
