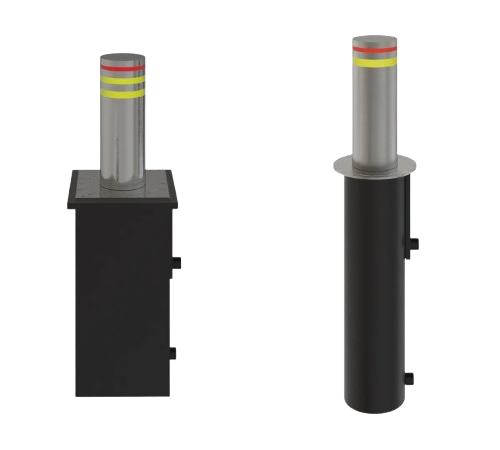

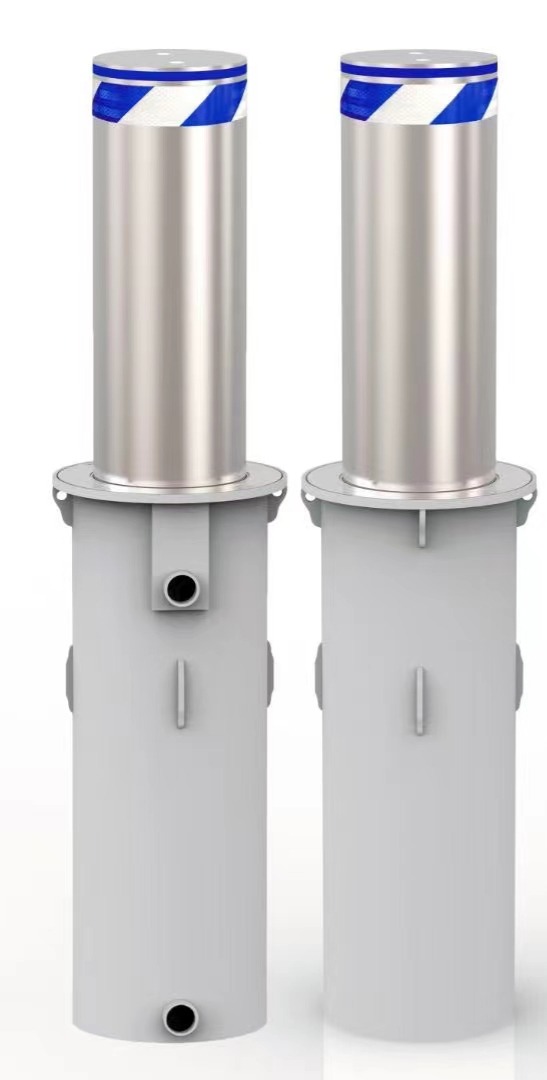

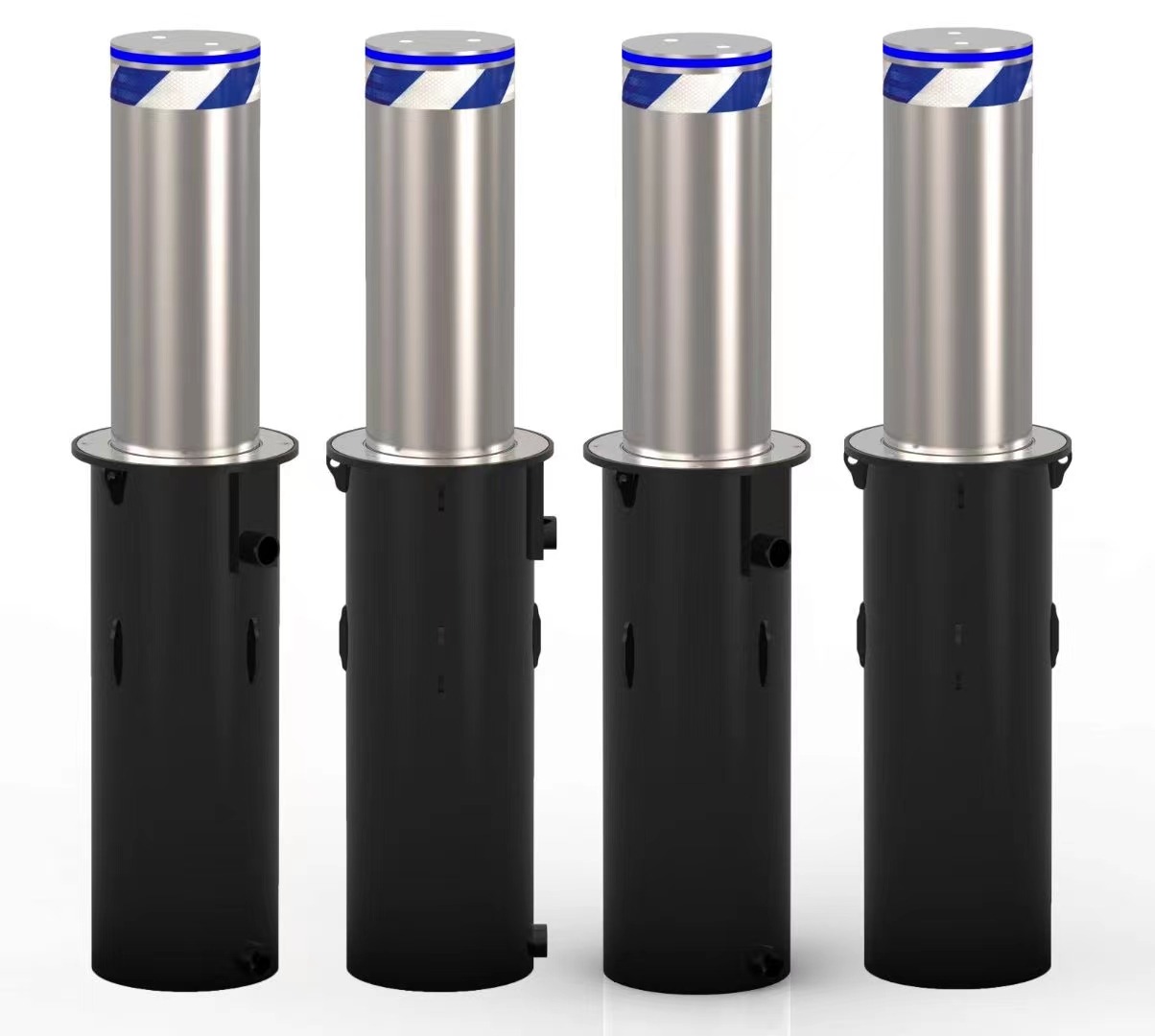

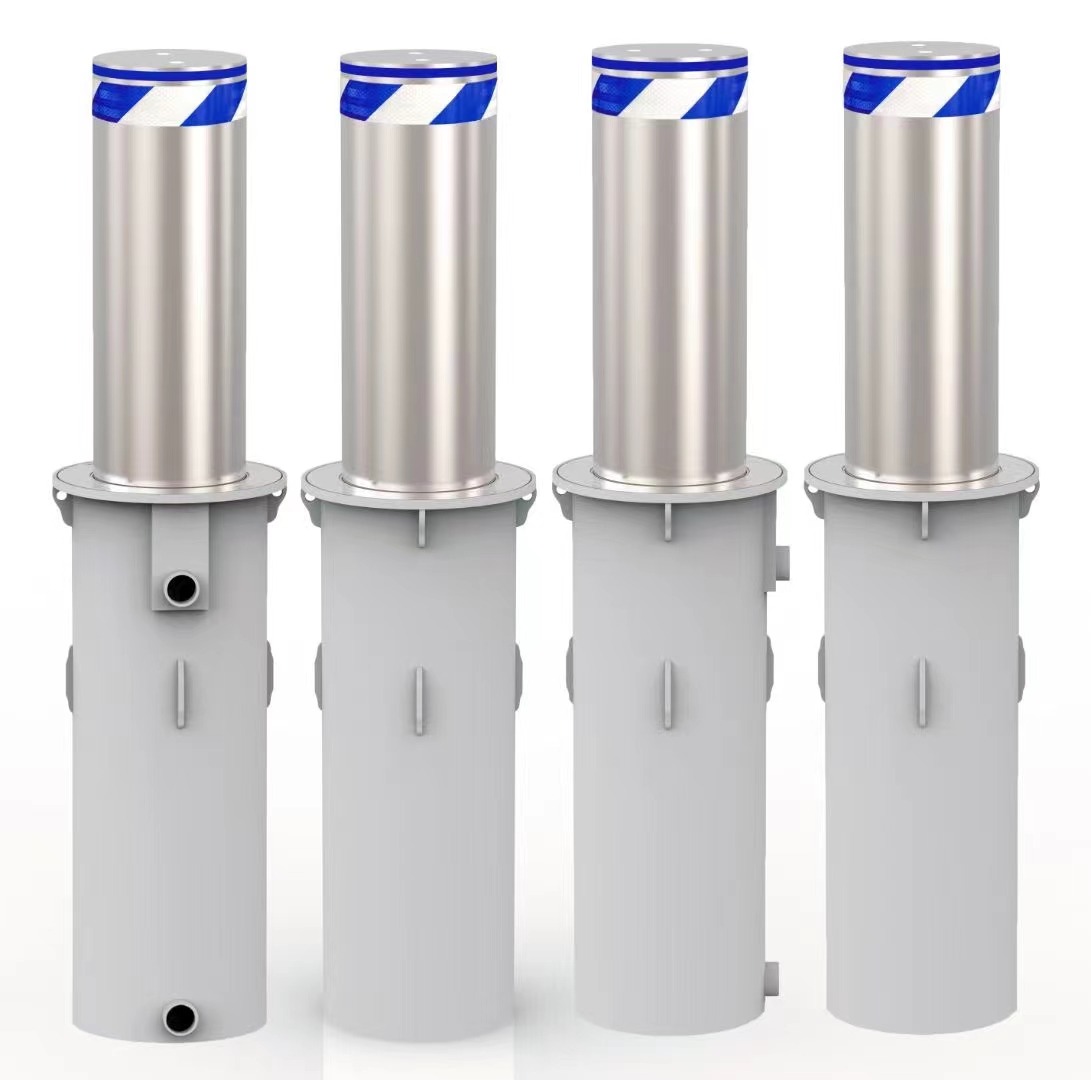

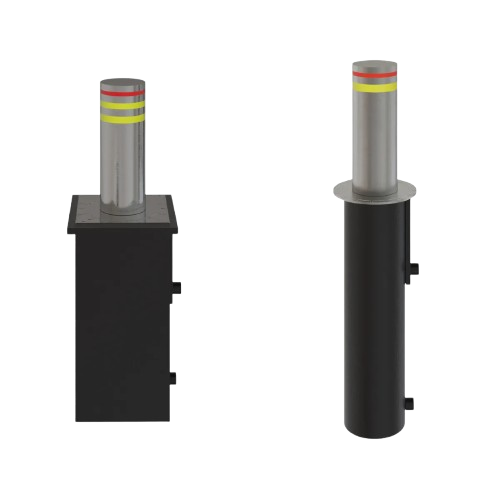

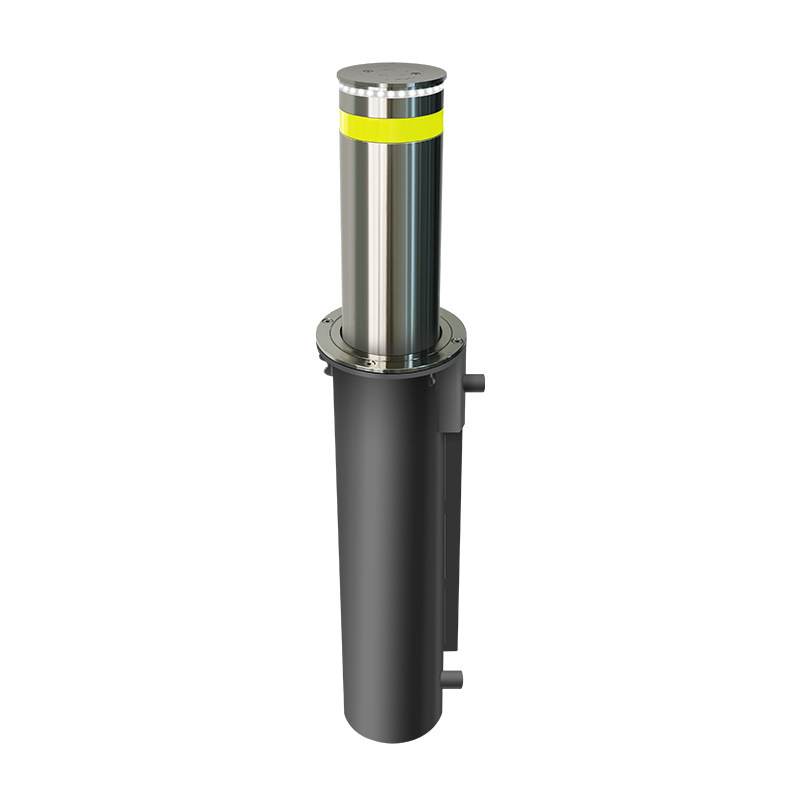

Telegiga Hydraulic Bollards
TeleGiaga Hydraulic Bollards is a premium-grade access control solution designed to secure restricted zones with high efficiency. Engineered for modern urban environments, these bollards provide seamless and automated management of vehicular entry using a hydraulic system, offering smooth, reliable up-and-down motion on command.
Technically robust, the TG-HRB Hydraulic bollard operates with a minimum 4 KW motor running at 1500 rpm, ensuring powerful performance. Constructed with an S275 steel inner core and encased in a 316 stainless steel sleeve, it offers superior durability against environmental stress, including temperatures ranging from -25 °C to +65 °C and up to 95% humidity.
Waterproof and dustproof of hydraulic power movement: IP68
Can pass 80-120 tons of container trucks

Constructed with an S275 steel inner core and encased in a 316 stainless steel sleeve
Hydraulic & electrical system control for up-and-down motion on command
Description

Model
TG- HRB
System Control
Hydraulic & electrical
Protocols
Supports BLE Beacon (UID, URL, TLM) .
Motor Power
Min 4 KW, 1500 rpm
Proximity Sensor
Available to sense the position of the bollard
Environmental durability
316 stainless steel sleeve, underground parts are hot dip galvanized
Structure
Heavy duty
Type of steel
S275 (inner core), finishing 316 stainless steel sleeve
Environmental conditions
-25 °C and +65 °C, %95 non-condensing humidity
